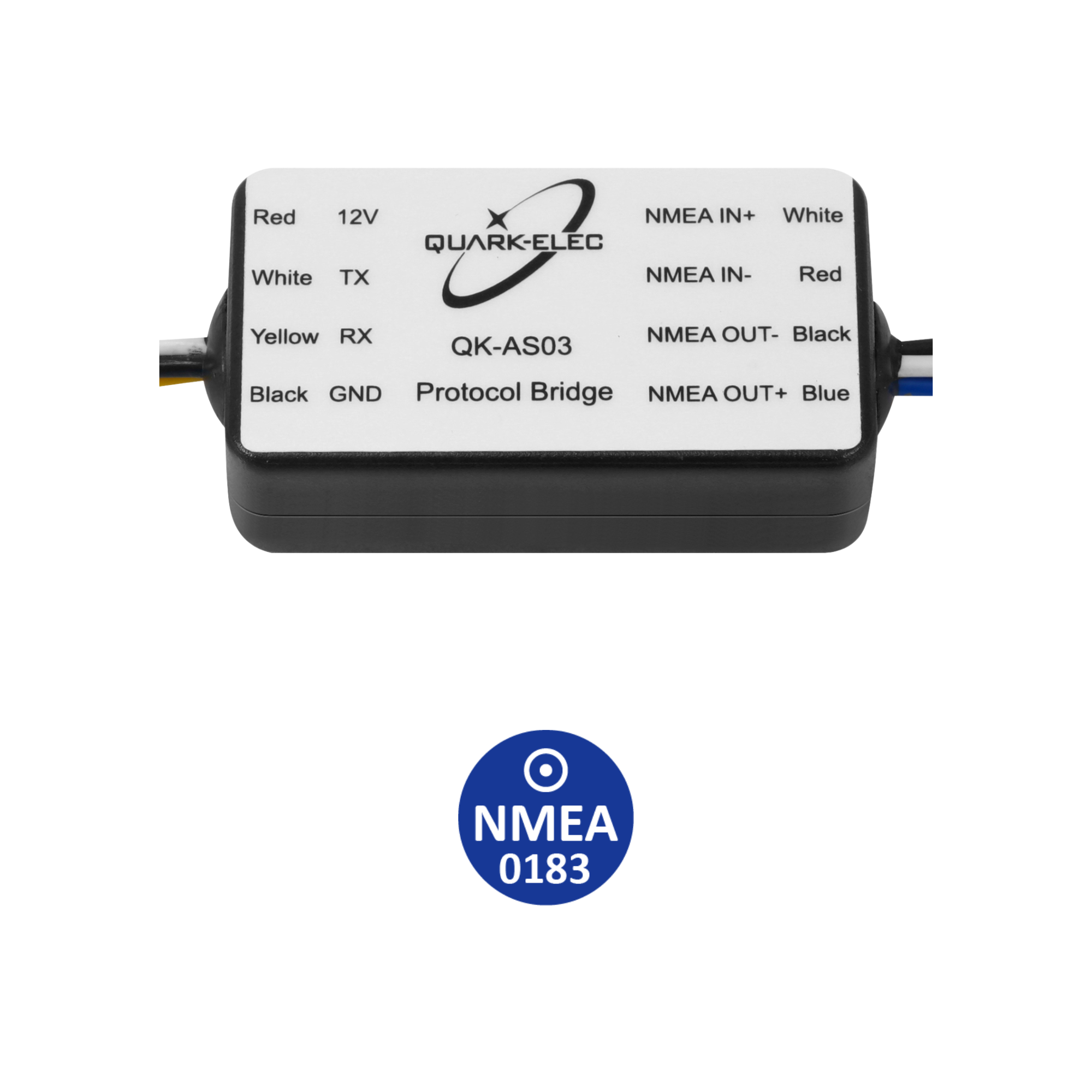

QK-AS03 NMEA Protocol Bridge enables the connection of Quark-elec (or other) NMEA 0183 RS422 products to older RS232 chart plotters or sensors (including older Garmin/Raymarine/Standard Horizon devices).
Converts NMEA 0183 RSS422 to RS232 and visa -versa.
The AS03 solves the issue of how to convert the balanced signal output by NMEA 0183 RS422 products to the unbalanced signal required by older NMEA 0183 RS 232 instruments and chart plotters.
Features
Ā· RS232 to RS422 signal conversion
Ā· RS422 to RS232 signal conversion
Ā· Provides instant compatibility between Quark-elec products and older plotters and instruments using the older RS232 protocol.
Ā· Simple āPlug ānā Playā connection
Ā· No setup/configuration needed
Example Connection – How to convert NMEA 0183 RS 422 to RS232 and convert RS 232 to RS422.
What’s Included?
1 x QK-AS03 NMEA Protocol BridgeĀ module.
Help and Support
For any technical questions regarding this product, you can visit the forum atĀ https://www.quark-elec.com/forum/Ā and ask us your question,Ā Ā itās regularly checked by our technical team and your question may already have been answered there.
Alternatively, contact us directly, with details of your set up and we will be happy to help.
Manual
Detailed technical specifications. (The 'Technical Application Note')
QK-AS03 Garmin Bridge enables the connection of Quark-elec AIS Receivers to Garmin devices. QK-AS03 solves the issue of converting the balanced signal output by Quark-elec AIS receivers into the unbalanced signal required by Garmin plotters.
