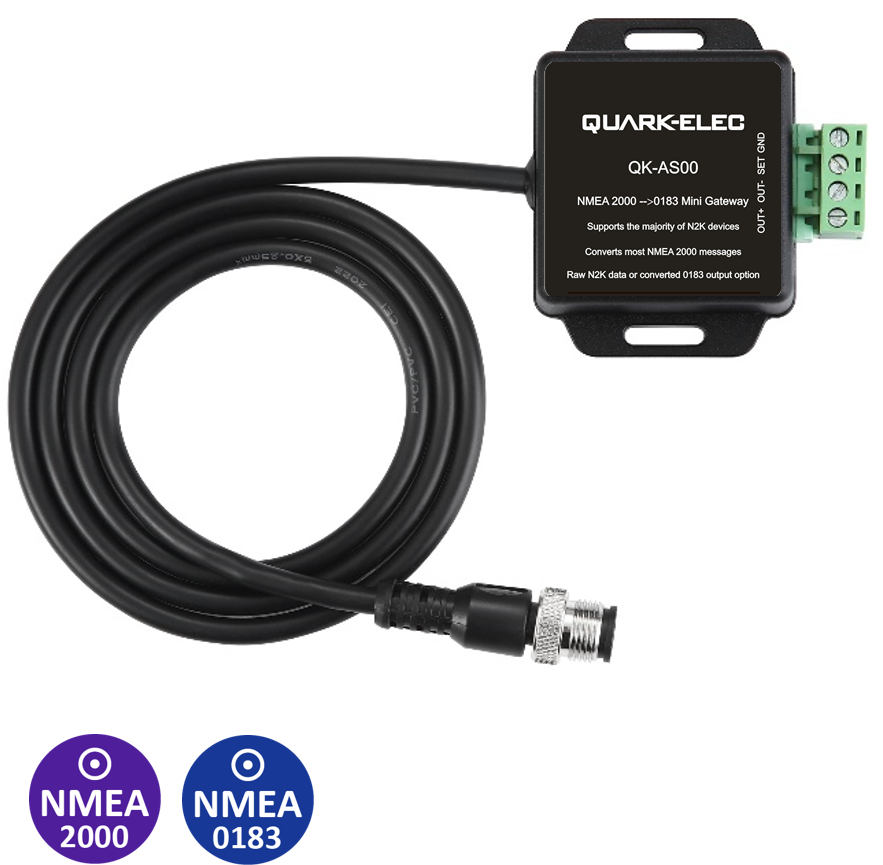

AS00 NMEA 2000 to NMEA 0183 Mini Gateway
$126.00
Sophisticated NMEA 2000 to NMEA 0183 mini gateway.
- Designed to easily fit onto most surfaces
- Small enough to fit behind instrument panels
- Compatible with most NMEA 0183 devices(listeners)
- Supports the conversion of the majority of NMEA 2000 messages
- NMEA 0183 output baud rate set to 38.4k bps to reduce the amount of possible data overflow
In stock
The QK-AS00 NMEA 2000 to NMEA 0183 Mini Gateway provides an easy solution to linking the newer NMEA 2000 network to older NMEA 0183 devices by converting NMEA 2000 PGNs to NMEA 0183 output sentences. The QK-AS00 is compatible with most NMEA 2000 devices and converts the majority of NMEA 2000 messages.
Features
- Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences
- Galvanic opto-isolation on NMEA 2000 bus connection
- Compatible with a wide range of NMEA 0183 devices(listeners)
- Comes with a pre-fitted 1-meter NMEA 2000 cable
- NMEA 0183 output baud rate set to 38.4kbps to reduce the amount of possible data overflow.
Applications
- Marine AIS / GPS receivers – A027+
- GPS & heading sensor – such as the AS07-N2K
- Multiplexer – such as the A032 and A034-B
- NMEA 2000 starter kit
Need to convert NMEA 0183 to NMEA 2000 instead? Check out our QK-AS01 mini gateway
What’s Included
1 x NMEA 2000 to NMEA 0183 mini gateway
Help and Support
For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question,  it’s regularly checked by our technical team and your question may already have been answered there.
Alternatively, contact us directly, with details of your set up and we will be happy to help.
Setup Guide
QK-AS00 Basic Setup Overview.
Manual
Detailed technical specifications. (The 'Technical Application Note').
