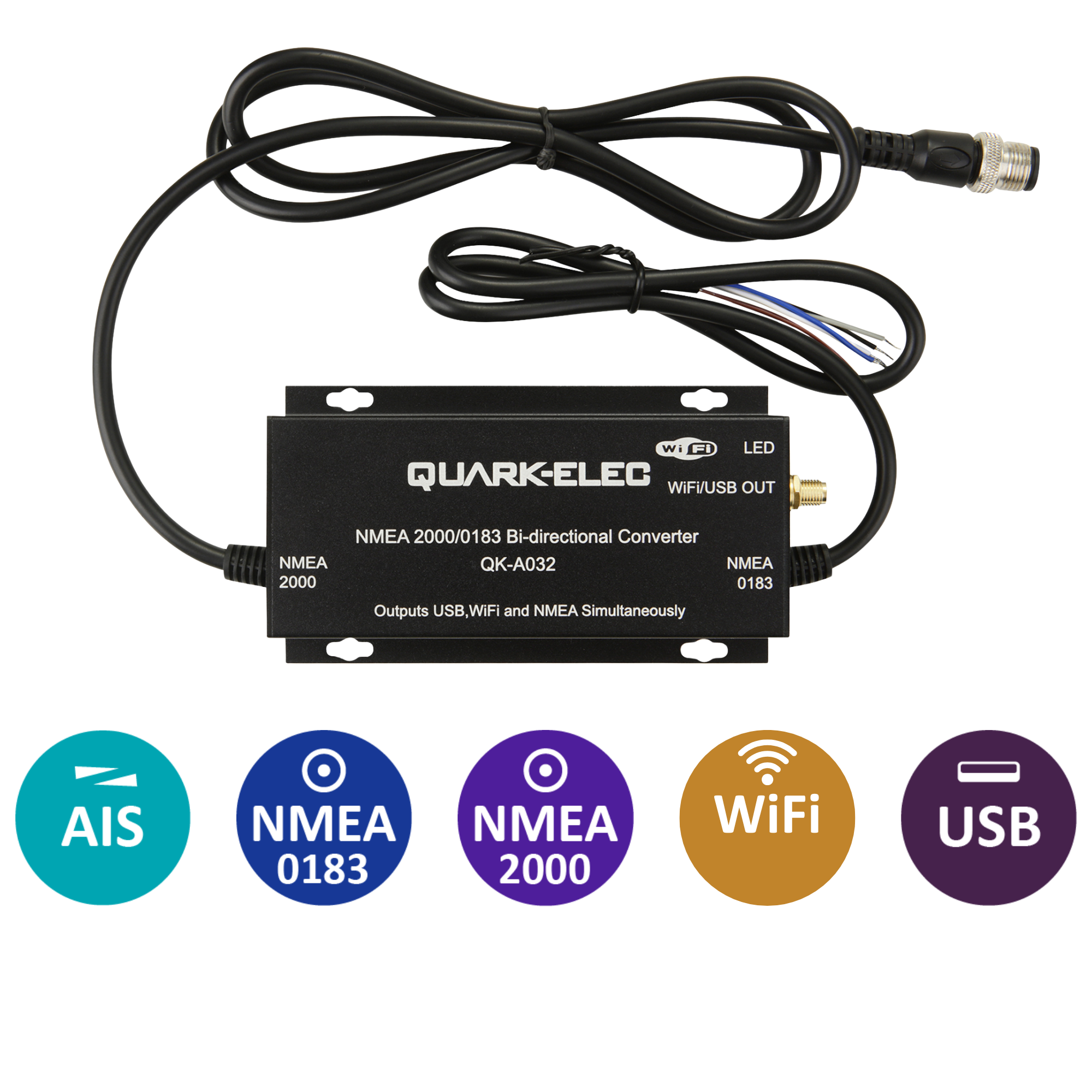

A032 NMEA 2000/0183 Bi-directional Gateway + USB + WiFi

The QK-A032 NMEA 0183 to NMEA 2000 bi-directional gateway provides straight forward connection of NMEA 0183 equipment to NMEA 2000 networks and vice versa.

The Bi-directional gateway will let you:

• Connect NMEA 0183 equipment to your NMEA 2000 bus
• Additionally, convert NMEA protocols in both directions: 0183 to 2000 and 2000 to 0183.
• View the combined data through a chart plotter or USB and WiFi to your laptop, tablet or smart phone

Connect NMEA 0183 equipment to the high-speed world of N2K networking. Cross-protocol connectivity and conversions allows you to use both NMEA protocols on your boat.

Full conversion list in the manual.

Unlike most N2K gateways on the market, which lose functionality in their AIS versions, the A032 converts all the standard messages and AIS messages

Features

• Converts the most common NMEA 0183 sentences into NMEA 2000 PGNs
• Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences
• WiFi/USB NMEA messages output
• Pre-fitted cables for ease of installation
• WiFi supports ad-hoc and station mode (connects wirelessly ‘peer to peer’ without a router or through a router to all connected devices)
• Configurable baud rate (default baud rate is set to 38400bps, but configurable using configuration software)
• Galvanic opto-isolation on NMEA 0183 input and NMEA 2000 bus connection
• Free firmware updates provided when new features and conversions are added
• Compatible with Windows, Mac, Linux, Android and iOS iPhone through USB OTG. Please note, initial configuration may only be performed using a Windows operating system.
• Can also connect to older RS232 products through optional Protocol Bridge (AS03). For more information, read below

Check the table in the manual for the sentences/PNGs that your equipment requires.

FAQ – How to connect NMEA0183 RS422 to older RS232 devices.

This product uses the NMEA 0183-RS422 protocol (differential signal), however some older chart plotters or instruments may use the older NMEA-RS232 protocol (single-ended signal).

To ensure A032 compatibility with any older NMEA0183 device, check if your device uses NMEA0183 RS422 or RS232

• NMEA0183 RS422 devices’ wiring is compatible ‘out of the box’
• NMEA0183 RS232 will require a Protocol Bridge (AS03) to connect your wiring

Connecting the A032 to an older (RS232) instrument or chart plotter is not a problem, simply order the QK-AS03 Protocol Bridge. Our QK-AS03 Protocol Bridge connects NMEA-RS232 wiring to MNEA0183-RS422 and vice versa, using a simple ‘plug ‘n’ play’ connection, with no setup or configuration needed.

You will probably need an AS03 if you are connecting to an older Garmin, Raymarine or Standard Horizon device. The easiest way to check is to look at the input/output connections on the device that you will connect the multiplexer to. If the input/output connections on your device (chart plotter, depth reader, etc.) have a TX, RX or GND connection, use a protocol bridge.

If in doubt contact us for advice..

What’s Included?:

• 1 x QK-A032
• 1 x USB cable (not pictured)
• 1 x setup guidebook.
• 1 x WiFi Antenna (not pictured)

Available to add to your order:

• QK-AS03 NMEA Protocol Bridge

• QK-AS2K NMEA 2000 N2K Starter Kit

Help and Support

For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question,  it’s regularly checked by our technical team and your question may already have been answered there.

Alternatively, contact us directly, with details of your set up and we will be happy to help.
