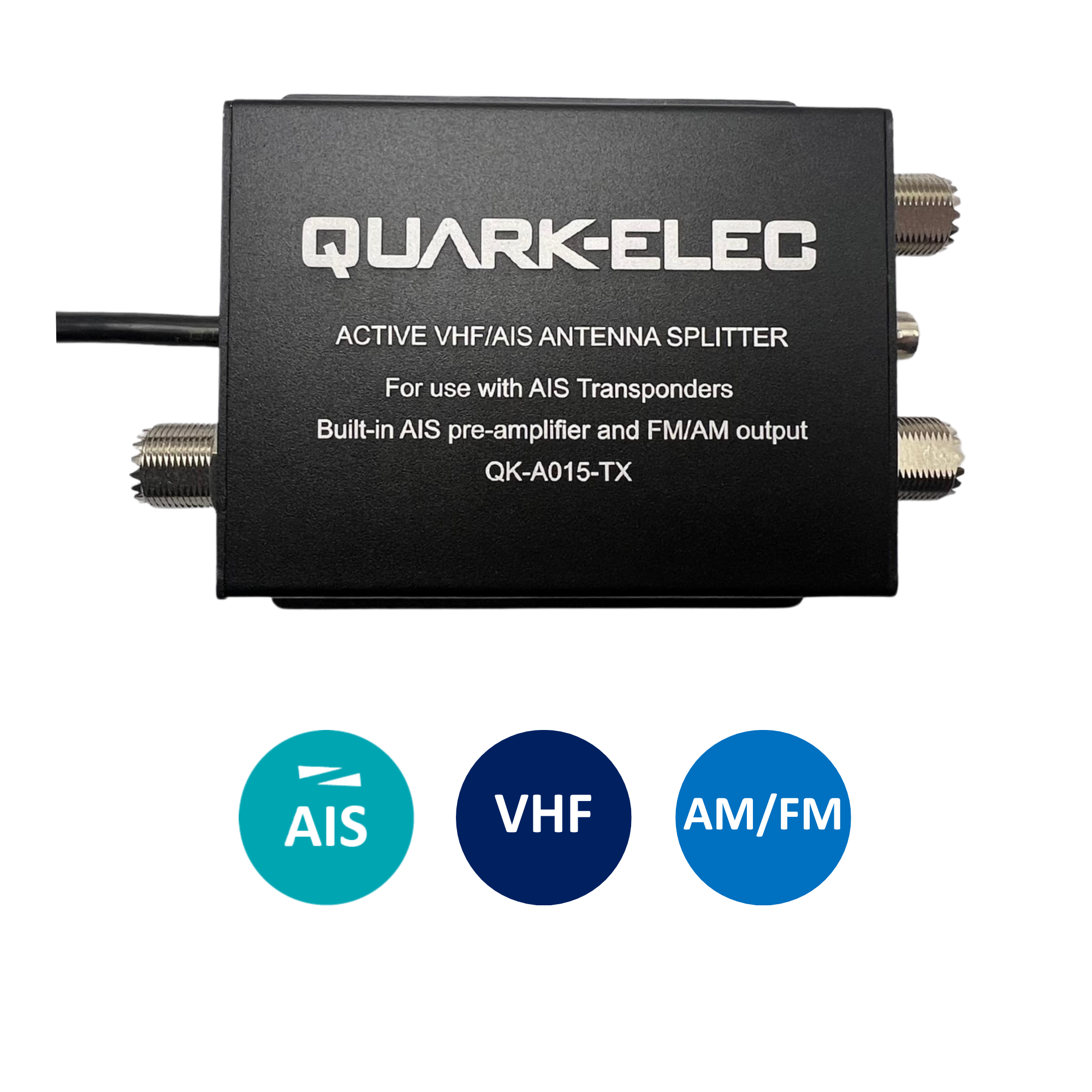

A015-TX Active VHF Splitter (for AIS transponders)

A015-TX Active VHF Splitter (for AIS transponders) - Image 2

A015-TX Active VHF Splitter (for AIS transponders) - Image 3

A015-TX Active VHF Splitter (for AIS transponders) - Image 4

A015-TX Active VHF Splitter (for AIS transponders) - Image 5

A015-TX Active VHF Splitter (for AIS transponders) - Image 6

A015-TX Active VHF Splitter (for AIS transponders)

$216.30

The QK-A015-TX Active AIS-VHF Antenna Splitter allows one VHF antenna to be shared between VHF and AIS devices:
- VHF radio (reception and transmission)
- AIS transponder (reception and transmission)
- AM/FM radio (reception)

Built-in pre-amplifier providing AIS signal gain (typically 12dB) maximizes AIS reception and range
VHF fail-safe functionality to continue transmitting VHF radio even if the power to the splitter fails
Straight forward connection (no configuration required)
Low power consumption.

In stock (can be backordered)

Description
Manual / Drivers

VHF aerial splitter This active AIS-VHF Antenna Splitter provides a typical AIS Gain of 12dB, while allowing one VHF antenna to be shared between,

VHF radio
AIS transponder and
AM/FM radio

Specifically, the A015-TX allows the one VHF antenna to provide the following functions:

Reception of VHF radio, AIS messages and AM/FM radio
Transmission from VHF radio
Transmission of AIS messaging from your AIS transponder
Straight forward connection to the relevant devices

The A015-TX is an active splitter.

This is an important distinction, as, while many splitters cause signal loss, an active splitter actually provides a signal gain for AIS and minimizes VHF and FM/AM insert loss. The A015-TX’s built-in pre-amplifier amplifies the AIS signals, thereby increasing the AIS receiver range and reception.

AIS antenna splitter for AIS transponder

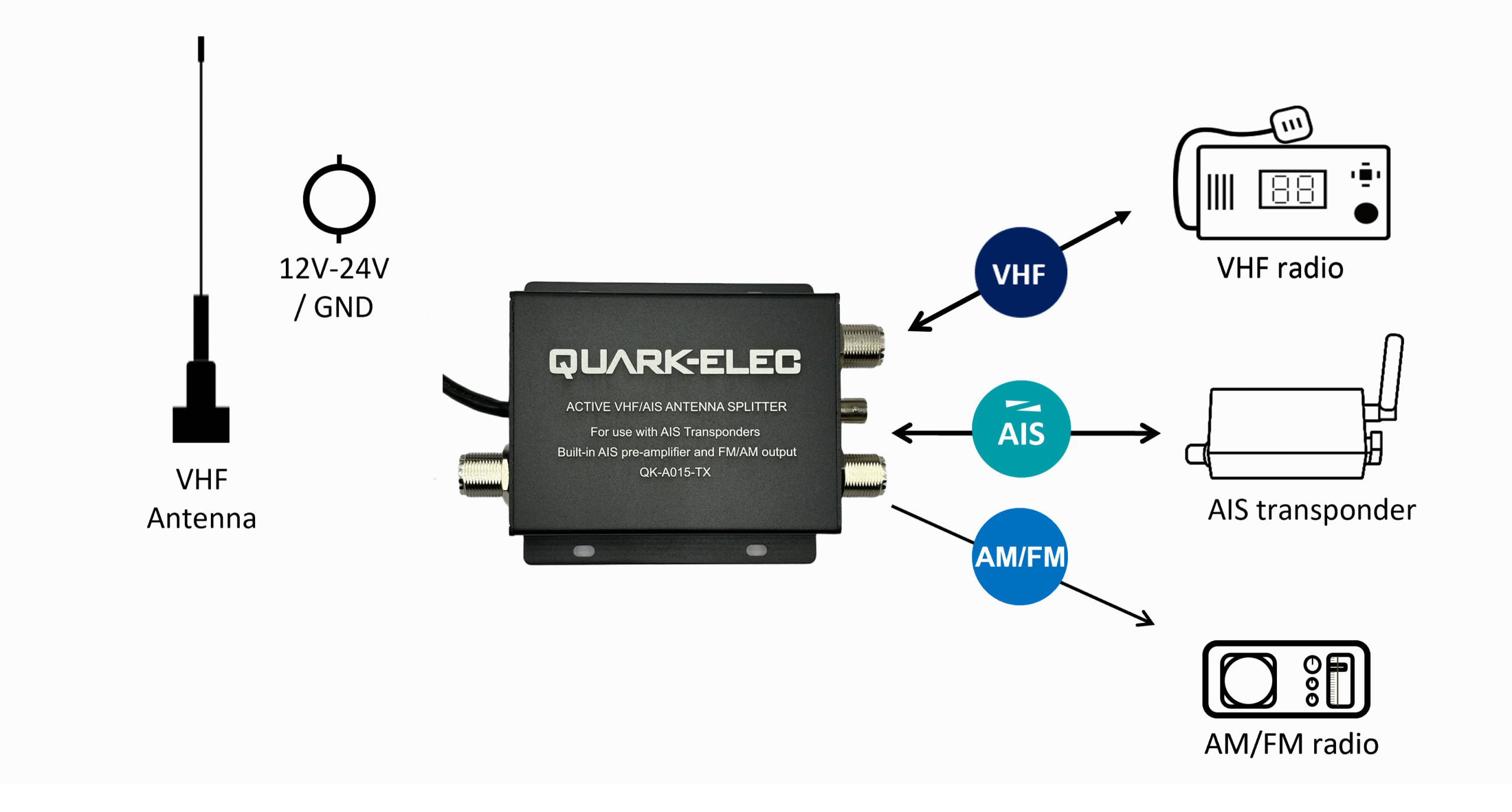

The A015-TX has five connections:
• Power cable: connect to 12V-24V DC power
• VHF Antenna: SO239 connector for VHF antenna
• VHF Radio: SO239 connector for VHF radio
• AIS: SO239 connector for AIS transponder
• FM/AM: BNC connector for FM/AM radio signal output

Features

12V-24V powered
Low power consumption
Uses standard SO239 connector for VHF, AIS and antenna connections
Typical AIS gain 12dB
Less insert loss (≤ 3.0dB) for VHF radio and FM/AM radio(≤ 0.5 dB)
Built-in pre-amplifier (typical Gain 12dB) providing AIS signal gain and maximizes receivers’ range
LED power and status indicator
Compact & easy to install
VHF failsafe function – in the unlikely case of splitter power loss or failure, the VHF radio remains functional, as VHF radio has full priority.

Fully compatible with all AIS transponders and will maximize their performance.

Please note: The A015-TX is compatible with AIS transponders/transceivers.

What’s included?

1 x QK-A015-TX
1 x printed setup guide.

Help and Support

For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question, it’s regularly checked by our technical team and your question may already have been answered there.

Alternatively, contact us directly, with details of your set up and we will be happy to help.
