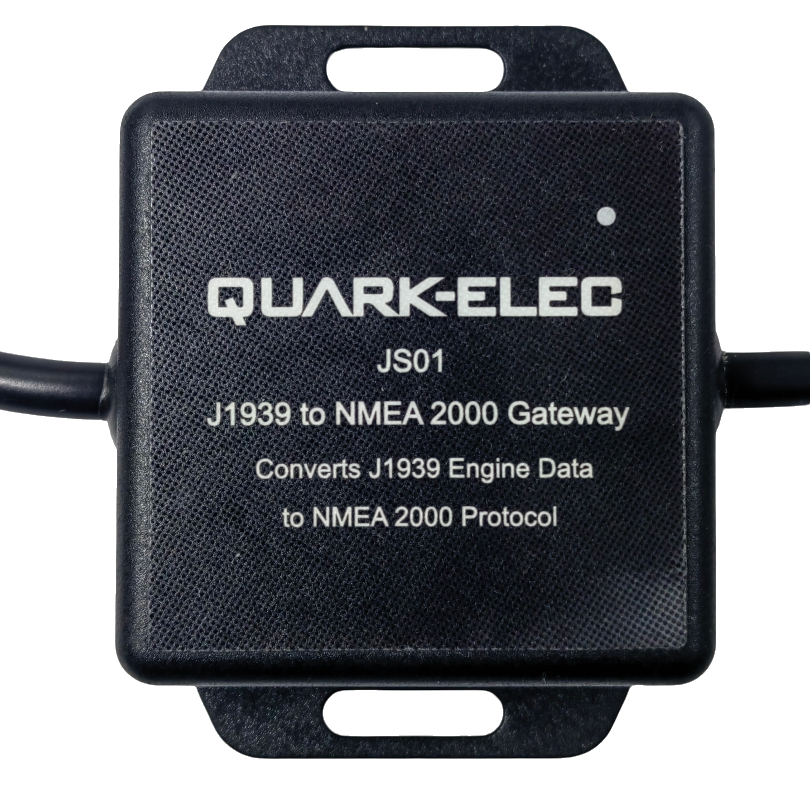

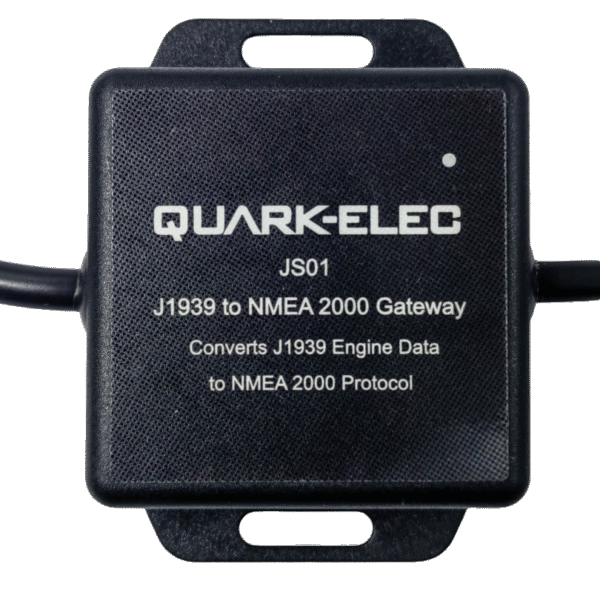

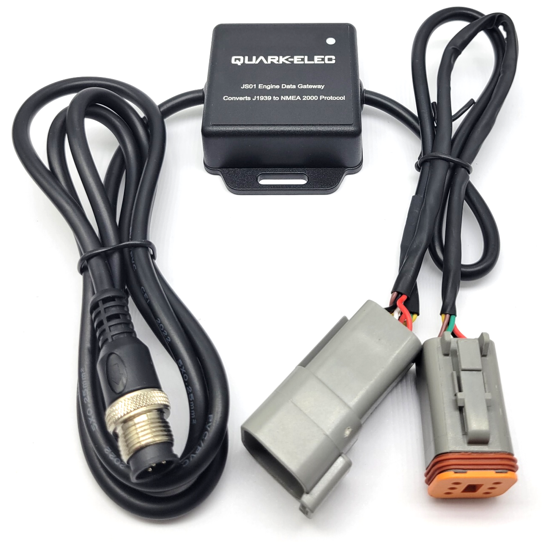

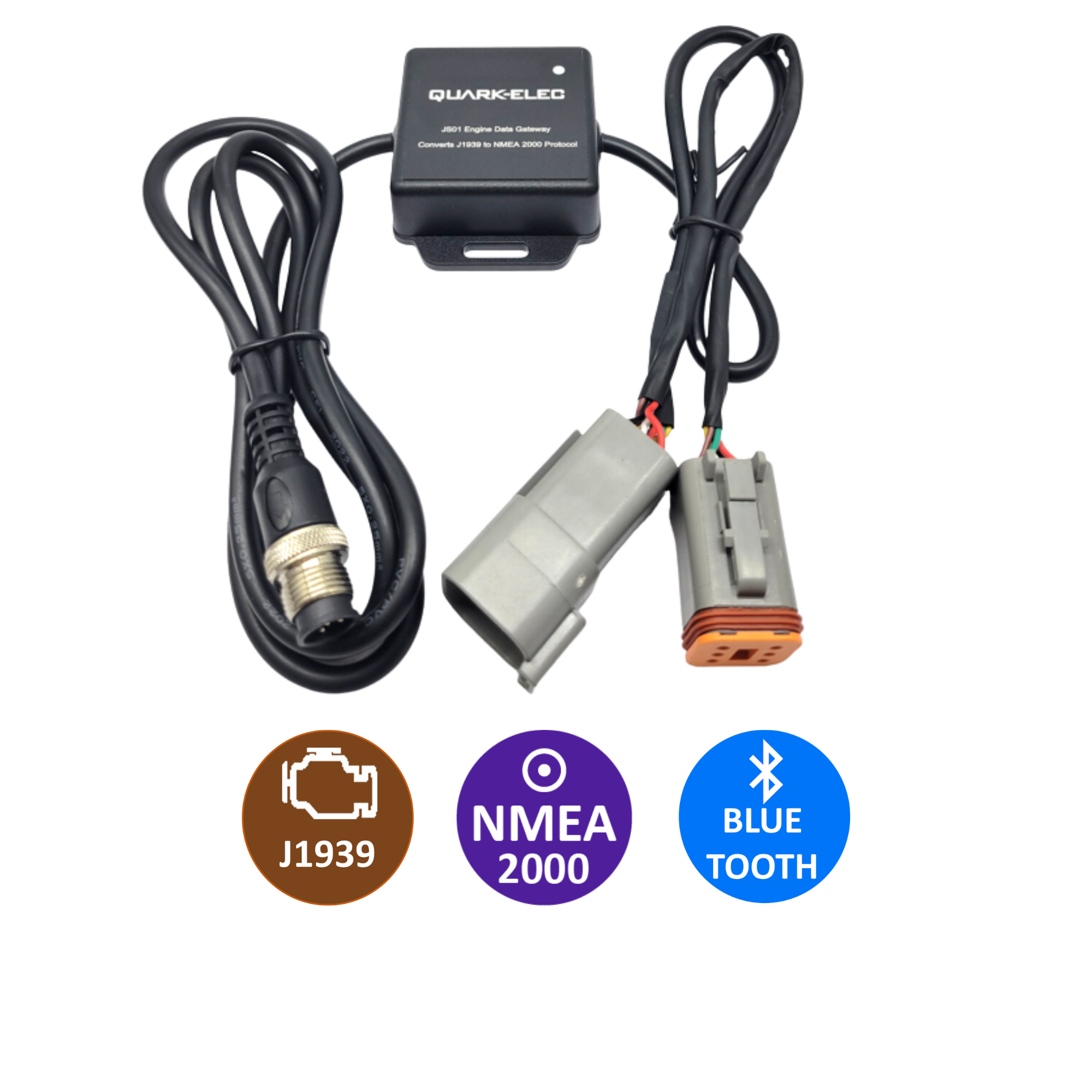

JS01 J1939 to NMEA 2000 Engine Data Gateway

Introduction

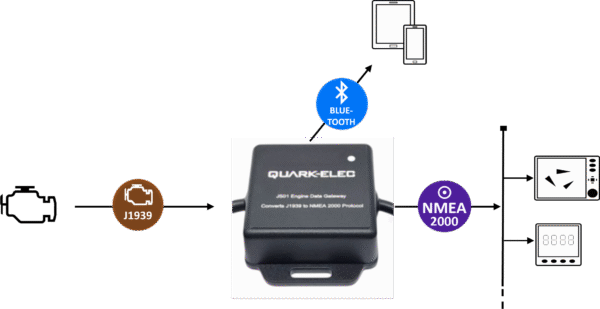

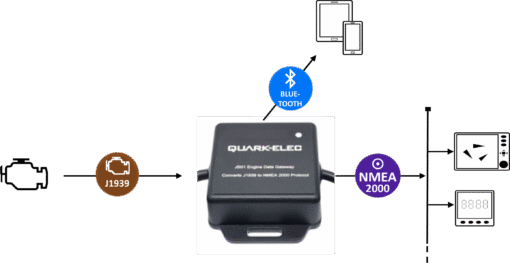

The JS01 is designed for use in marine environments and provides a simple, effective way to integrate SAE J1939-compatible devices into an NMEA 2000® network. By connecting directly to the J1939 network of compatible engines, transmissions, or gensets, the JS01 converts essential data such as engine speed, operating hours, fuel level, oil temperature, and gear ratio. This information is then made available on multifunction displays and other NMEA 2000 devices onboard.

Features

• Seamlessly converts essential engine data from J1939 interface to the NMEA 2000 network

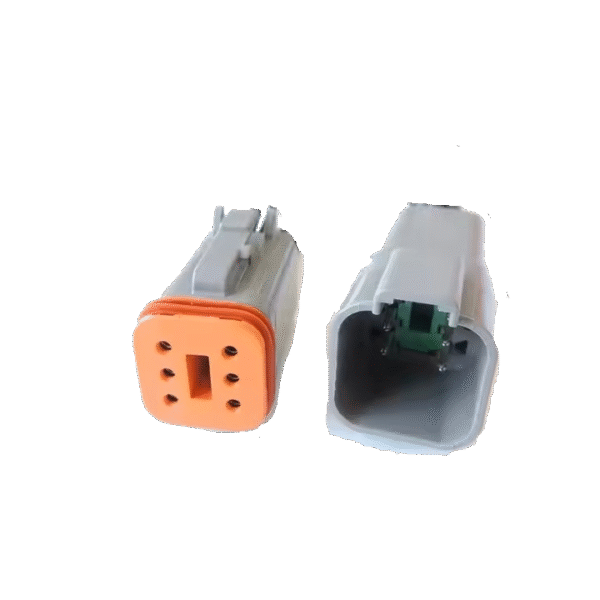

• Broad compatibility with most SAE J1939-compliant engine interfaces
• Plug-and-play installation – no complex setup required
• Read-only on J1939 interface, does not affect existing engine control or status systems
• Wireless configuration and live data viewing via dedicated Android app
• Integrated status LED for clear operational feedback
• Galvanic opto-isolation between J1939 and NMEA 2000 networks

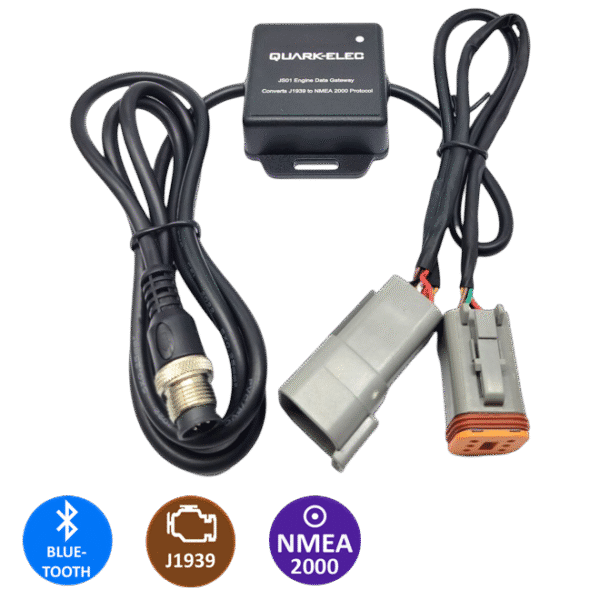

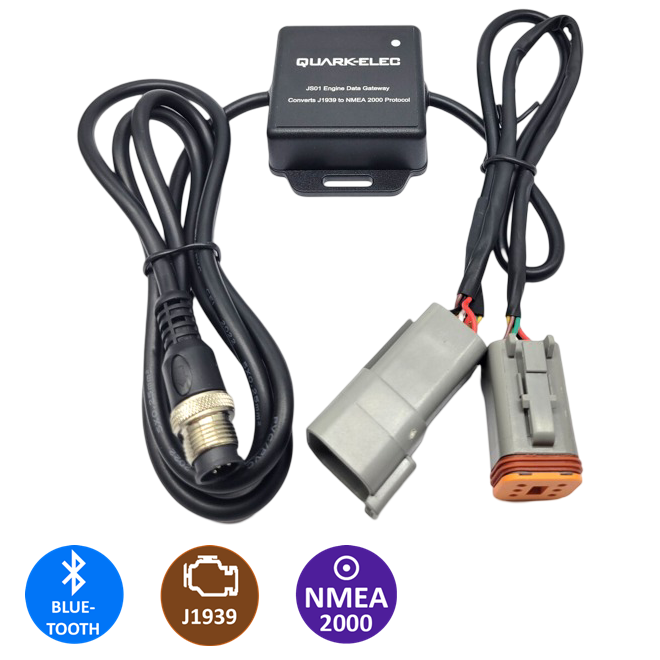

• Pre-installed NMEA 2000 drop cable for fast, hassle-free installation
• Adjustable instance number to support multi-engine vessel installations



App & Configuration

The JS01 is a plug-and-play device that requires no initial configuration before connecting to an NMEA 2000 network.

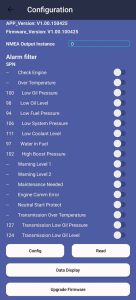

However, if you wish to view engine data or adjust the instance number to support multiple engines, you will need to use the JS01 Config App on an Android tablet or mobile device. The configuration tool also allows you to filter engine error and warning messages transmitted to the NMEA 2000 network.

Still Need More from Your Engine – Convert Analogue to NMEA 2000

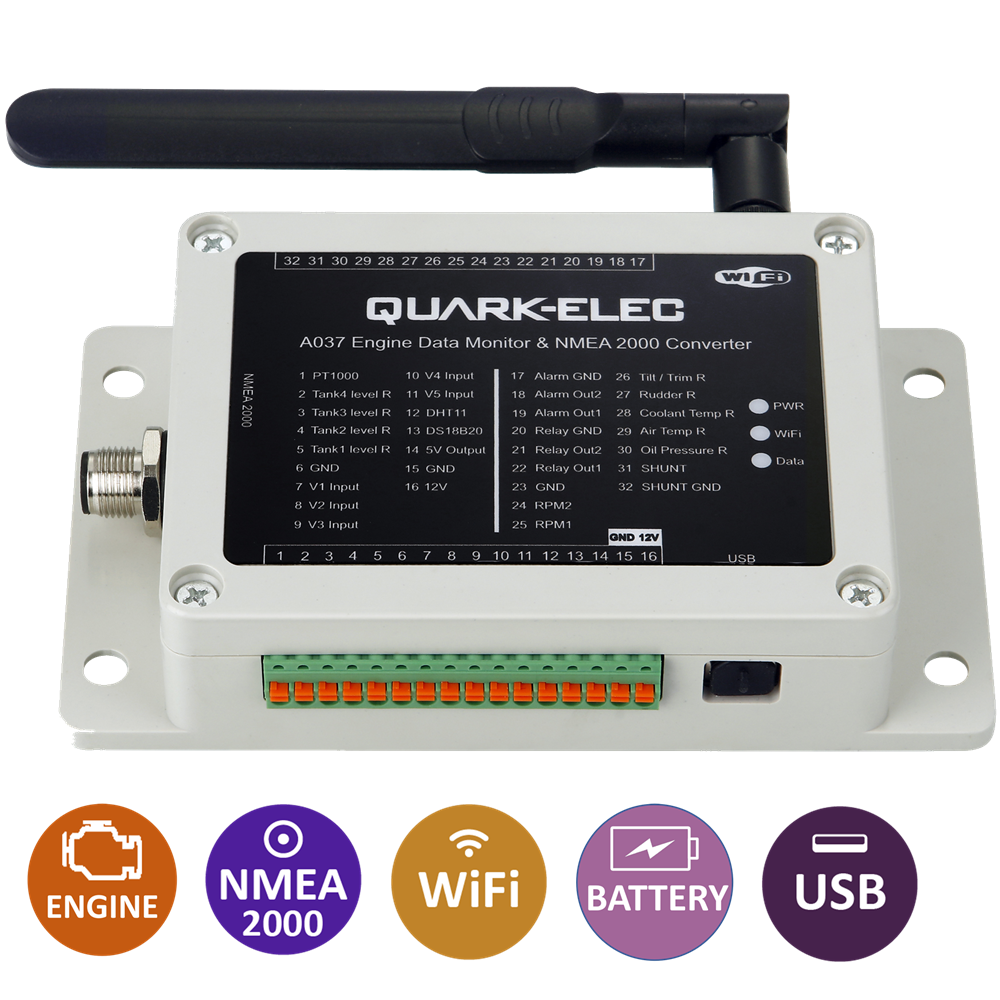

If your engine outputs analogue data and you’d like to monitor parameters such as RPM, temperature, humidity, tank level, oil temperature and pressure, or rudder angle, the A037 Engine Data Monitor & NMEA 2000 Converter makes it easy. Effortlessly convert analogue signals into NMEA 2000 data and keep a close eye on your engine’s health in real time. Perfect for upgrading engine monitor system and ensuring smooth, reliable performance on the water.
Get more details about A037 Engine Data Monitor & NMEA 2000 Converter from here.

What’s included

1 x JS01 SAE J1939 to NMEA 2000 Gateway

Help and Support

For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forums/ and ask us your question,  it’s regularly checked by our technical team and your question may already have been answered there.

Alternatively, contact us directly, with details of your set up and we will be happy to help.
