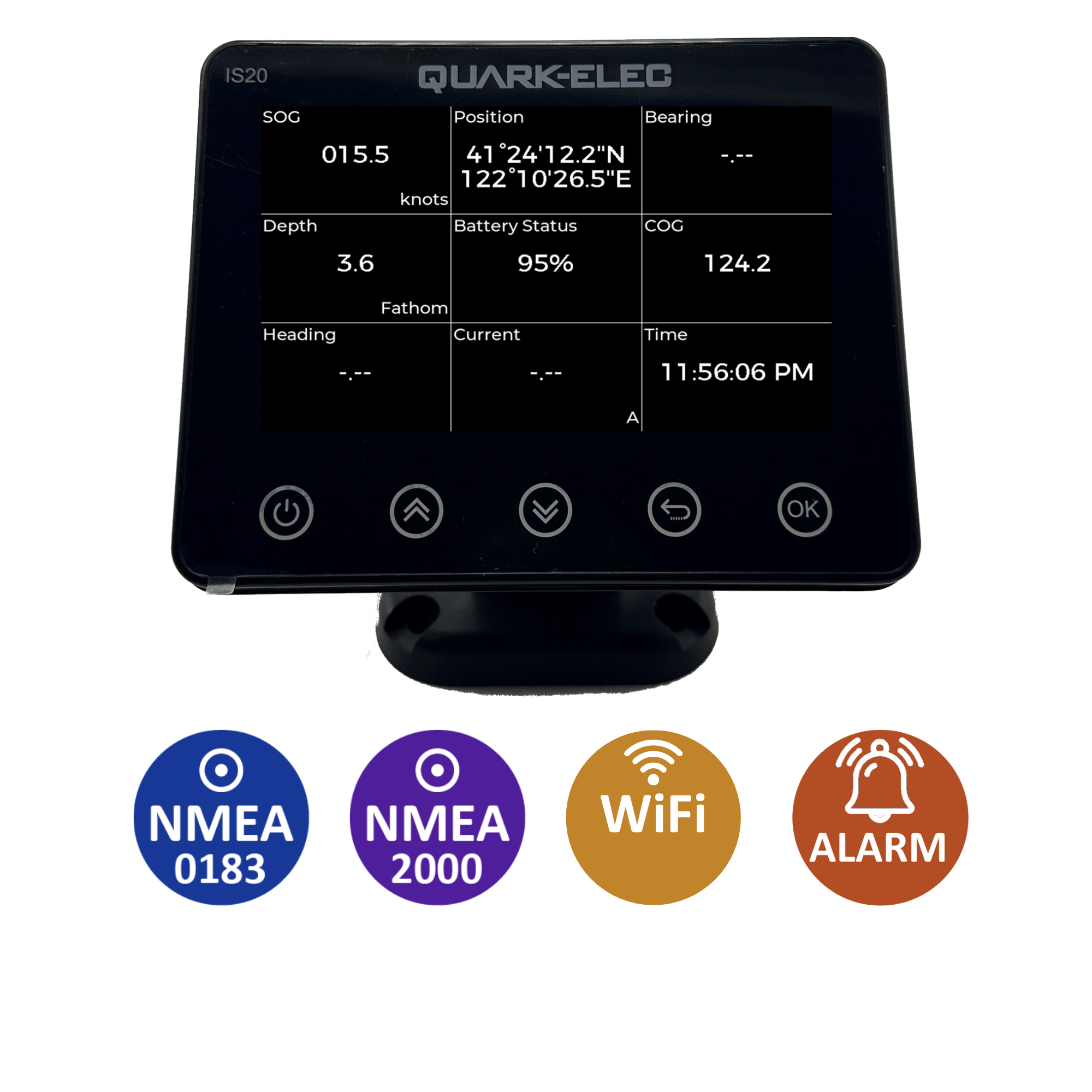

IS20 Networked Multifunction Instrument

The IS20 is a networked multifunction instrument that provides you with the flexibility to display instrument and navigation data that is most important to you. It consolidates multiple marine instrument functions into a single display, thereby simplifying your on-board experience with the IS20.

Equipped with a high-brightness screen, the IS20 delivers a user-friendly and easily customizable solution for displaying information from three distinct interfaces: NMEA 0183, NMEA 2000 bus, and WiFi network. It effortlessly presents a wide range of crucial data, including battery status, depth readings, engine metrics, environmental conditions, fuel management details, GPS positioning, heading information, navigation cues, rudder position, speed measurements, tank levels, time, weather updates, and wind data.

To ensure seamless operation and continued support, the IS20 offers firmware updates that can be conveniently maintained by connecting the device to the internet. This enables the addition of new supported information and features over time. Furthermore, the instrument boasts programmable audio and visual alarms, allowing you to establish up to four alarms to guarantee optimal safety and situational awareness while on board your vessel.

Features:

The IS20 offers a range of features designed to enhance your marine experience:

• Sunlight-viewable 5.0″ LCD touch screen for clear visibility in all lighting conditions.
• Intuitive graphical user interface that allows for comprehensive customization to meet your specific needs.
• Day & Night mode, optimizing visibility during both day and night-time operations.
• Multiple data views, including wind, speed, position, depth, engine, environment, fuel, and navigation, providing a comprehensive overview of essential information.
• Support for NMEA 0183, NMEA 2000, and WiFi network data inputs, ensuring compatibility with a wide range of devices and systems.
• Efficient power consumption, allowing for extended use without draining the onboard power supply.
• Versatile mounting options, with both dash mount and flush mount kits available to suit your installation preferences.
• Audible and visual alarms, providing real-time monitoring of input data to ensure it remains within the defined safety range.

These features combine to offer a professional-grade multifunction display that delivers reliable performance and enhances your boating experience.

Available to add to your order:

• QK-A027-plus NMEA 2000 AIS+GPS Receiver
• A032 NMEA 2000/0183 Bi-directional Gateway + USB + WiFi
• A037 Engine Data Monitor & NMEA 2000 Converter
• AS07-N2K NMEA 2000 GPS and Heading Sensor
• QK-AS08-N2K three-axis Compass & Attitude Sensor

What’s included with the IS20?

• IS20 Networked Multi function Instrument
• Dash mounting kit
• USB cable
• NMEA 0183 input/output cable
• NMEA 2000 cable (1 meter)

Help and Support

For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question.

Alternatively, contact us directly, with details of your set up and we will be happy to help.
