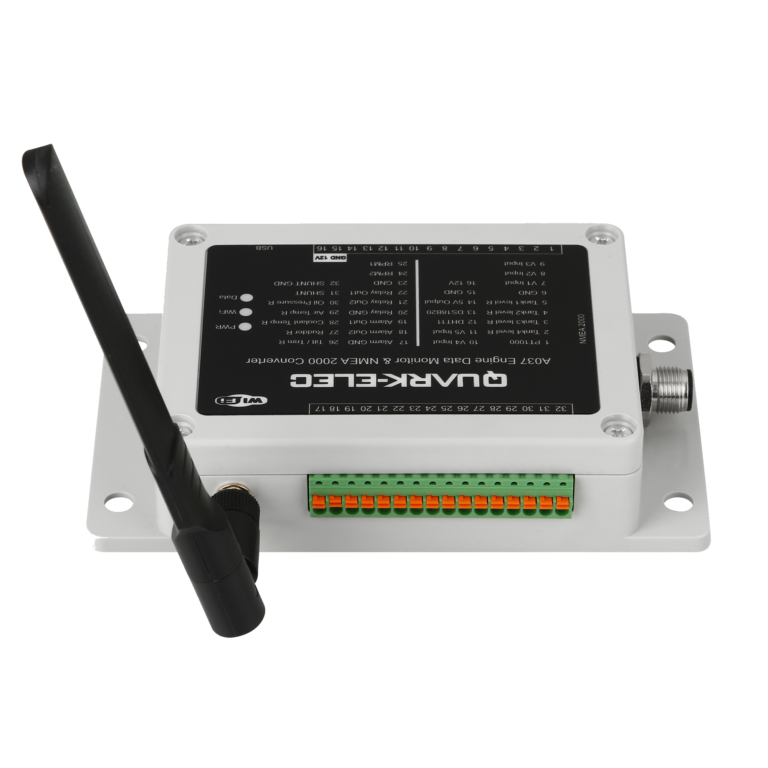

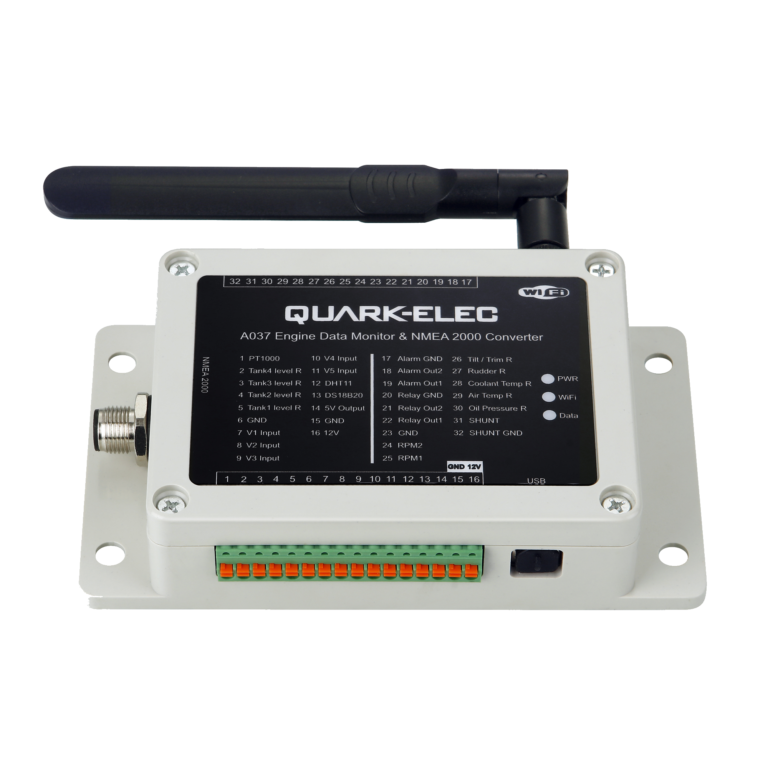

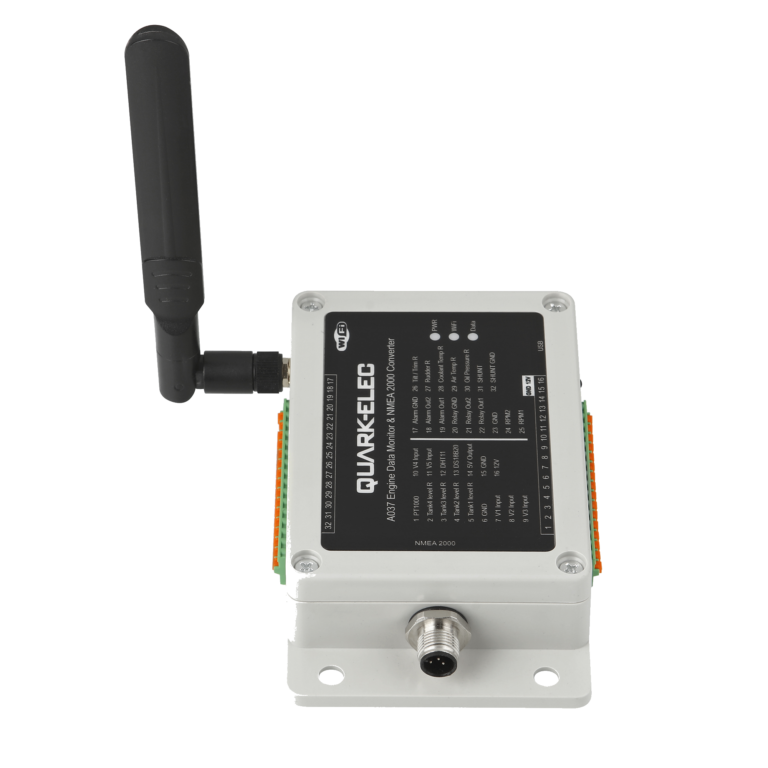

A037 Engine Data Monitor & NMEA 2000 Converter

The A037, Engine Analogue Data Monitor & NMEA 2000 Converter, a state-of-the-art solution meticulously designed to elevate the monitoring capabilities of marine engines and ambient temperature and humidity. By utilizing the A037, users can ensure that their boat engines operate under optimal conditions, thereby extending their operational lifespan.

Features

Seamless Engine Data Conversion: The A037 seamlessly converts analogue gauge data, RPM input, and pulse signals into NMEA 2000 format, enabling real-time monitoring through NMEA 2000 display devices for effortless information sharing across networks.

Enhanced Compatibility: Configurable for both single and dual engine setups, the A037 boasts extensive compatibility, accommodating up to 4 tank level sensors, 5 Voltage input sensors, and 5 Resistance input sensors suitable for various engine parameters. This ensures easy monitoring of engine data on NMEA 2000 chart plotters.

Ambient Temperature and Humidity Monitoring: The A037 is compatible with popular digital sensors including PT1000, DS18B20, and DHT11, offering users more options for monitoring engine data and environmental conditions.

Advanced Control and Customization: With two alarm outputs and relay outputs, the A037 allows for advanced customization and control, empowering users with enhanced monitoring and notification capabilities.

Effortless Configuration and Updates: Equipped with a Type B USB port, the A037 facilitates effortless configuration and calibration via connection to a Windows-based PC. This port also allows for firmware updates to access additional features.

Industrial-Grade Performance: These comprehensive features culminate in an industrial level multifunction display, ensuring reliable performance and an enhanced boating experience.

Web Interface: With your phone, tablet or PC connected to WiFi network of the A037, you will be able to view all of your data that is being handled by the A037 in one convenient, clear and user friendly interface. You will have the choice of viewing your data in either the ‘Digital’ format or a series of gauges in the ‘Dashboard’. Being able to monitor your vessel’s status and performance on the go will offer a huge peace of mind while out at sea.

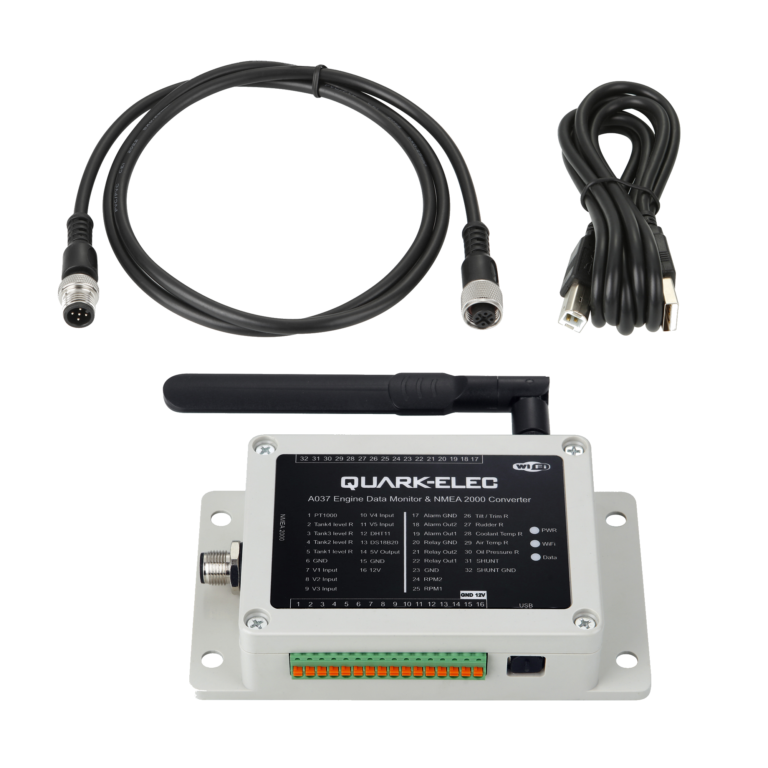

What’s included with the A037?

• • A037 Engine Data Monitor & NMEA 2000 Converter
  • USB cable
  • NMEA 2000 cable (1 meter)

Help and Support

For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question.

Alternatively, contact us directly, with details of your set up and we will be happy to help.



Click Here to browse all Marine Products

Product Videos

Play list contains:

• Unboxing
• How to Set up a range of sensors including Fuel Level, Engine Temperature and RPM
• How to connect to our bespoke web interface
• How to connect with NMEAremote©
